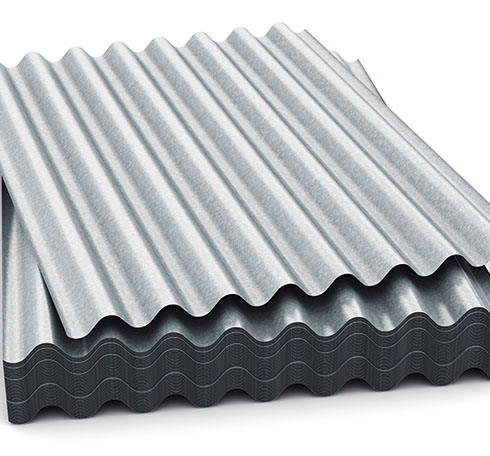

Galvanized steel is produced by passing cold rolled steel through a kettle containing molten zinc. This metal-coating process ensures the adhesion of zinc to the surface of the steel sheet, which provides excellent corrosion resistance through a process of sacrificial corrosion.Applications include roofing, base material for pre-painting, ducting and other construction-related uses.Available in plain or pre-painted sheets or coils.
| SN | Grade | Full Hard | Corrugated | Soft, Commercial & LFQ |
|---|---|---|---|---|
| 1 | Specification & Grade | EN 10142(FEP02), EN10143, ASTM A 653 / ASTM A 924, CQ, LFQ, | ||
| JIS G 3302 & Other Equivalent Specifications | ||||
| 2 | Width Range (mm) | 750 to 1320 mm | 750 to 1320 mm Width before Corrugation | 750 to 1250 mm (LFQ & Drawing Quality) |
| 3 | Thickness Range (mm) | 0.145 to 0.60 mm | 0.145 to 0.60 mm | 0.20 to 0.80 mm |
| 4 | Coil Diameter :- | |||
| 4.1 | Inner diameter | 508 mm & 610 mm | Not Applicable | 508 mm & 610 mm |
| 4.2 | Outer diameter | 1500 mm Max | -- -- | 1500 mm Max |
| 5 | Cut to Length | Up to 3600 mm | ||
| Length | ||||
| 6 feet(1828.8mm) | Up to 3600 mm | |||
| 7 feet(2133.6mm) | ||||
| 8 feet (2438.4mm) | ||||
| 9 feet (2743.2mm) | ||||
| 10 feet (3048.0mm) | ||||
| 12 feet (3657.6mm) | ||||
| 14 feet (4267.2mm) | ||||
| 16 feet ( 4876.8 mm) | ||||
| 6 | Coil Weight | 3 to 12 MT | 3 to 12 MT | |
| 7 | Packet Weight | For Sheets - 2 MT & above | For Sheets - 2 MT & above | |
| 8 | Surface Treatment | Chromated & Dry with Regular / Minimized Spangles | Chromated & Dry with Regular / Minimized Spangles | Chromated & Dry or Slightly Oiled (as required) |
| 9 | Zinc Coating (Gms / m2) | 120 to 275 GSM (Gram per sq.mtr.) | 120 to 275 GSM (Gram per sq.mtr.) | 120 to 275 GSM (Gram per sq.mtr.) |
| 10 | Grades | Hard | Hard-Roofing | Soft-D,DD,LFQ & Skin passed |
| 11 | Winding | Controlled Staggered Winding (14 mm Max) | Controlled Staggered Winding (14 mm Max) | Controlled Staggered Winding (14 mm Max) |
